Setting Up a Metal Detection Station in Your Shop
Share
The difference between a shop that scans lumber reliably and one that scans it inconsistently usually isn't the detector. It's whether scanning has a dedicated place in the workflow — a physical spot in the shop where it happens every time, before material moves to the machines.
A metal detection station doesn't need to be elaborate. It needs to be in the right location, set up correctly, and stocked with what you need to scan without interruption. Here's how to build one that works.
Why a Dedicated Station Matters
When scanning happens "somewhere near the lumber pile" with a detector pulled from a drawer, it's easy to skip, rush, or do incompletely. When it happens at a fixed station with a clear protocol, it becomes part of the shop routine — the same way your jointer and planer have fixed positions in the workflow.
A dedicated station also makes it easier to train other people. If you're running a school, a makerspace, or a shop with employees or apprentices, a defined location with a clear setup communicates that scanning is a required step, not an optional one. For more on building a protocol in educational settings, see metal detection for woodworking schools and makerspaces.
Location: Where to Put It
The station should be positioned between lumber storage and the machines — physically in the path that lumber travels from where it's stacked to where it gets processed.
This matters because it turns the station into a gate rather than an afterthought. Lumber that hasn't been scanned hasn't passed through the gate. If the station is off to the side or in a separate area, it's easy to bypass. If it's in the natural flow path, bypassing it requires a deliberate choice.
Avoid locating your station near:
- Steel workbenches or metal machine tables (interferes with tuning)
- Running motors, compressors, or electrical panels (electromagnetic interference)
- Concrete floors with rebar directly underneath (can affect tuning on the Little Wizard 2.5)
- Fluorescent lighting fixtures directly overhead (can cause interference)
Ideal surface: Wood sawhorses, a dedicated wood outfeed table, or a non-metal workbench. The board needs to be supported stably with access to both faces and all four edges without repositioning.
What Your Station Needs
The detectors
Primary: Lumber Wizard 5
Mount or hang it within arm's reach of the scan surface. Keep it off the floor — a wall hook, a dedicated shelf, or a hanging bracket keeps it accessible and protects it from shop debris.

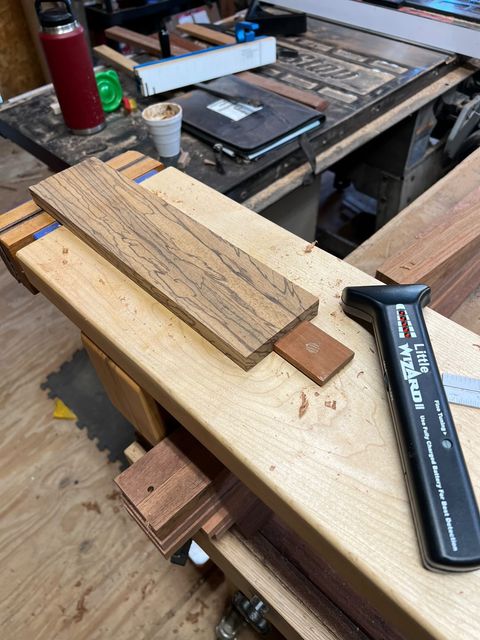

Secondary: Little Wizard 2.5
Keep it at the station alongside the Wizard 5. If you're running a two-detector workflow, both tools should be at the station and ready — not one here and one across the shop.
Batteries
Keep a box of fresh 9V alkaline batteries at the station. Not in a cabinet across the shop — at the station, within reach.
Make battery replacement part of the startup routine. Post a note if you need to: Replace battery before scanning. It sounds basic, but a weak battery is the number one cause of false alerts and missed detections, and it's entirely preventable with a 30-second habit. For a full explanation of why this matters, see why false alerts are almost always the battery.
Recommended: Duracell or Energizer alkaline 9V. Avoid budget batteries and rechargeable NiMH cells — their discharge curves don't match what the detectors are calibrated for.
Marking supplies
When the detector alerts, you need to mark the spot immediately before you move the detector. Keep chalk, a lumber crayon, or marking tape at the station. The Wizard 5's laser line tells you exactly where the metal is — mark it, then continue scanning. Extract after the full pass is complete.
Extraction tools
A pick or awl, a pry bar, pliers, and a magnet. Keep them at the station. Extraction shouldn't require a trip across the shop.
The magnet is useful for confirming what you've pulled out and for checking the extraction zone after removal. Once you've pulled a fastener, sweep the magnet over the area to catch any fragments.
A waste container
Somewhere to put extracted fasteners. A coffee can or small metal bin bolted to the station is fine. Don't leave extracted nails on the scan surface or the floor.
The Protocol Checklist
Post this at the station:
- ☐ Install fresh 9V battery
- ☐ Power on, tune away from metal (Wizard 5: 5 seconds auto / Little Wizard 2.5: manual screw)
- ☐ Scan face one — slow overlapping passes
- ☐ Flip — scan face two
- ☐ Little Wizard 2.5 — all four edges and both ends
- ☐ Mark and extract all alerts — re-scan after extraction
- ☐ Final pass on machine face before planer/jointer
A laminated checklist on the wall above the station takes 10 minutes to make and eliminates "I forgot to do the edges" indefinitely.
For High-Volume Shops
If you're processing significant quantities of reclaimed lumber, consider:
Two scan surfaces: One for initial face scanning (Wizard 5), one for edge work and follow-up (Little Wizard 2.5). Keeps the workflow moving without bottlenecks.
A dedicated battery rotation: Buy batteries in bulk, date the box when you open it, and replace on a monthly schedule regardless of apparent battery condition. For high-use environments, the cost is trivial and the reliability benefit is real.
Clear lumber staging: A "not scanned" zone and a "cleared" zone, physically separated. Use colored tape on the floor if needed. Anyone in the shop can see at a glance what's been cleared and what hasn't.
For Schools and Makerspaces
Post the checklist at eye level, in large print, above the station. Make it impossible to miss.
Assign station maintenance to a specific role — instructor, shop manager, or a rotating student responsibility. Someone needs to own battery replacement and tool condition. "Everyone's job" means no one's job.
Consider a logbook at the station where students record each scan session, any metal found, and the battery replacement date. It creates accountability and gives instructors a record of shop safety compliance.
The Payoff
A well-set-up metal detection station takes under a minute to use correctly — once the habit is established and the tools are where they need to be. The boards that come out the other side of the station go to your machines with confidence.
That confidence is worth the 10 minutes it takes to set the station up properly.
