How to Protect Your Planer and Jointer Blades from Hidden Metal in Reclaimed Lumber

Every woodworker who has run reclaimed lumber through a planer knows the anxiety. You feed the board in, the machine hums along — and then there's a sound you never want to hear. A crack, a bang, or a grinding shriek that tells you something metal just met your blades at full speed.

Planer and jointer blades are precision tools. They're not designed to hit nails. When they do, the results range from a nicked edge that throws off every subsequent cut to a completely shattered knife that needs immediate replacement — and occasionally, flying metal.

Here's how to protect your blades before it happens.

Why Reclaimed Lumber Is High Risk

Fresh-cut dimensional lumber from a mill is clean. Reclaimed wood is not. Barn boards, pallet wood, salvaged beams, and demolition lumber have spent decades holding structures together — with nails, screws, staples, lag bolts, and wire. Even wood that looks clean on the surface can harbor:

• Nails driven flush and painted over — invisible until your blade finds them
• Broken fastener shanks — the head pulled out but the body stayed in
• Wire staples from old fencing or baling wire embedded in the grain
• Lead sinkers or metal tags in logs that were floated downriver in the timber industry era
• Rebar or bolt fragments in reclaimed structural beams

These aren't rare edge cases. If you work with reclaimed wood regularly, you will encounter hidden metal. The question is whether your blades find it first. See our full guide on the hidden dangers in reclaimed wood for the complete picture.

The Real Cost of a Blade Strike

• Planer knives (HSS set): $30–$120 depending on machine
• Helical cutterhead carbide inserts: $5–$15 per insert, but a single nail can damage 6–10 inserts at once — $50–$150 per incident
• Jointer knives: $40–$200 per set
• Downtime: 30 minutes to several hours to replace and re-align blades

And that's the best case — no injury, no damage to the machine itself. A badly seated blade fragment can score your planer bed. Flying metal is a real safety risk. For the full cost breakdown, see what skipping a scan actually costs.

Step 1: Never Feed Reclaimed Wood Without Scanning First

This is the non-negotiable rule. No exceptions, no "this board looks clean." Every piece of reclaimed lumber gets scanned before it goes near a powered blade.

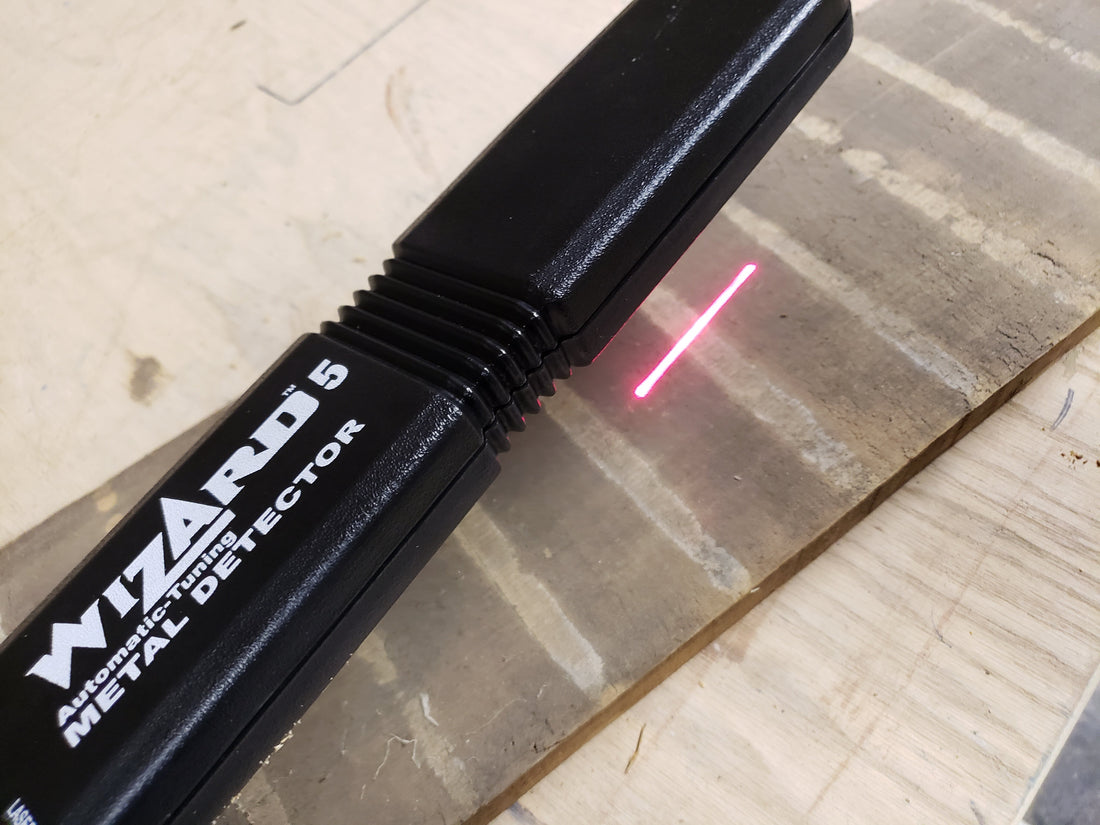

The Lumber Wizard 5 is purpose-built for this. It's calibrated for lumber densities and detection depths relevant to boards and beams. The laser line projects directly onto the wood surface at the point of detection, so you know exactly where to extract before milling.

Step 2: Scan All Four Faces

Most woodworkers scan the show face and call it done. That's not enough. A nail driven from the bottom or side of a board sits exactly where your planer bed or jointer table will push it straight into your knives.

Scan protocol for every board:

1. Face 1 (show face, top)
2. Face 2 (bottom, planer bed side)
3. Edge 1
4. Edge 2
5. Both ends if you're crosscutting first

It adds 60 seconds per board. It's worth it every single time.

Step 3: Remove Metal — Don't Mill Around It

When the detector flags something, don't guess at the depth and try to plane past it. Remove it.

• Use a cat's paw or nail puller to extract the fastener completely
• Probe the hole with a pick or awl — broken shanks often stay behind when heads are pulled
• Re-scan the area after extraction to confirm it's clear
• If you can't extract it, cut that section out on the bandsaw before milling

"It's probably shallow enough" is how blades get destroyed.

Step 4: Upgrade to a Helical Cutterhead If You Mill Reclaimed Wood Regularly

If reclaimed lumber is a regular part of your workflow, a helical cutterhead is worth the investment. When a carbide insert hits metal, only that insert (and maybe one or two neighbors) is damaged — not the entire knife set. You replace 1–3 inserts instead of a full blade set.

Step 5: Build the Habit Into Your Workflow

• Keep the detector at the infeed end of your planer, not across the shop
• Scan as you stack boards to feed — not as a separate step
• Mark flagged boards with chalk immediately and set them aside for extraction before any further processing

A detector that lives next to the planer gets used. One that lives on a shelf across the shop gets skipped.

FAQ

What's the best metal detector for protecting planer blades?
A woodworking-specific detector calibrated for lumber is essential. The Lumber Wizard 5 and Little Wizard 2.5 are designed specifically for this use case.

Can a metal detector find nails through thick beams?
Detection depth depends on the size of the metal object and the detector. Larger objects like bolts and lag screws are detectable at greater depths. Small finish nails are typically detectable up to 1.5–2 inches. For thick beams, scan all four faces and ends.

Is a helical cutterhead worth it for reclaimed wood?
Yes, if you mill reclaimed lumber more than occasionally. The per-incident cost of replacing individual carbide inserts versus a full knife set pays for the upgrade over time.

Do I need to scan wood I've already milled once?
Re-scan after each pass if you're taking significant material off. Removing surface material brings previously deep metal closer to the cutting zone.
